Aikon F7 Mini V3 20×20 MPU6000 Flight Controller Cheap Online Store Manchester

Are you looking to buy an Aikon F7 Mini v3 Flight Controller with MPU6000 in Australia?

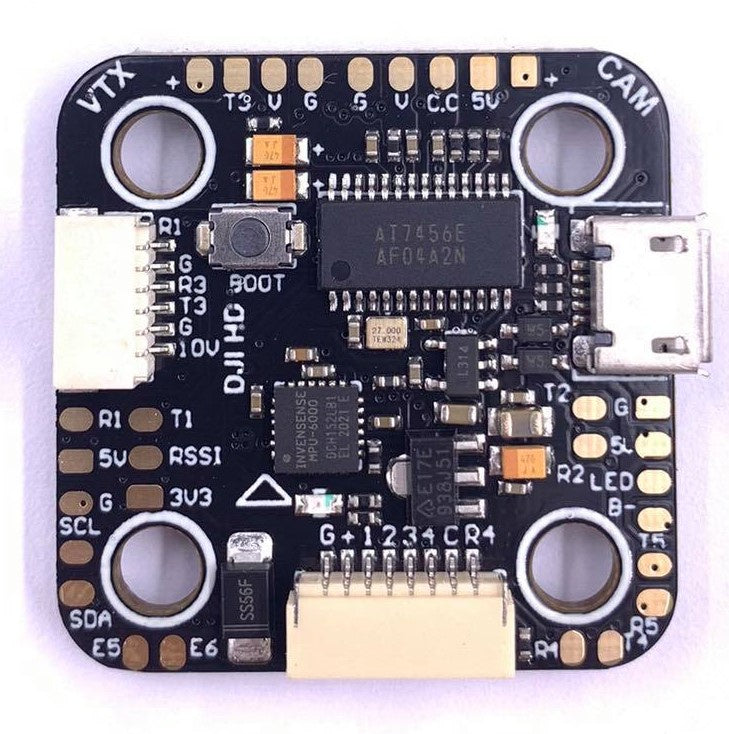

The Aikon F7 Mini HD 20×20 V3 Flight Controller is a new generation flight controller designed specifically to work with Aikon 4-in-1 ESCs. They’ve packed all the greatest features including HD compatibility into one seamless flight experience.

What features make the F7 amazing?

• 216mhz F7 processor
• 5 Software invertible hardware UARTS
• Onboard OSD and blackbox
• Software controlled VTX power switch
• LED outputs
• Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon 4-in-1 ESCs
• On-board voltage regulator up to 6S

Specifications　

• MCU: STM32F722RET6
• Gyro: MPU6000
• Flash: 16Mb on board
• OSD: AT7456E
• Input: 12-50V (3-6 Cell Lipo)
• Bec: 5V@2A
• Firmware: AIKON F7
• Size(mm): 30x30x5
• Weight(g): 5.4

Features:

• STM32F77RET6 MCU
• BMI270 Gyro
• DJI Air Unit Port: YES
• Built in OSD (AT7456)
• Built in 16mb Flash for DATA logging
• Wide range of voltage input (50V)
• 5 UARTS
• VTX Switch
• Cam controller
• l2c LED-STRIP, BUZZER, ESC5, ESC6, PPM, RSSI
