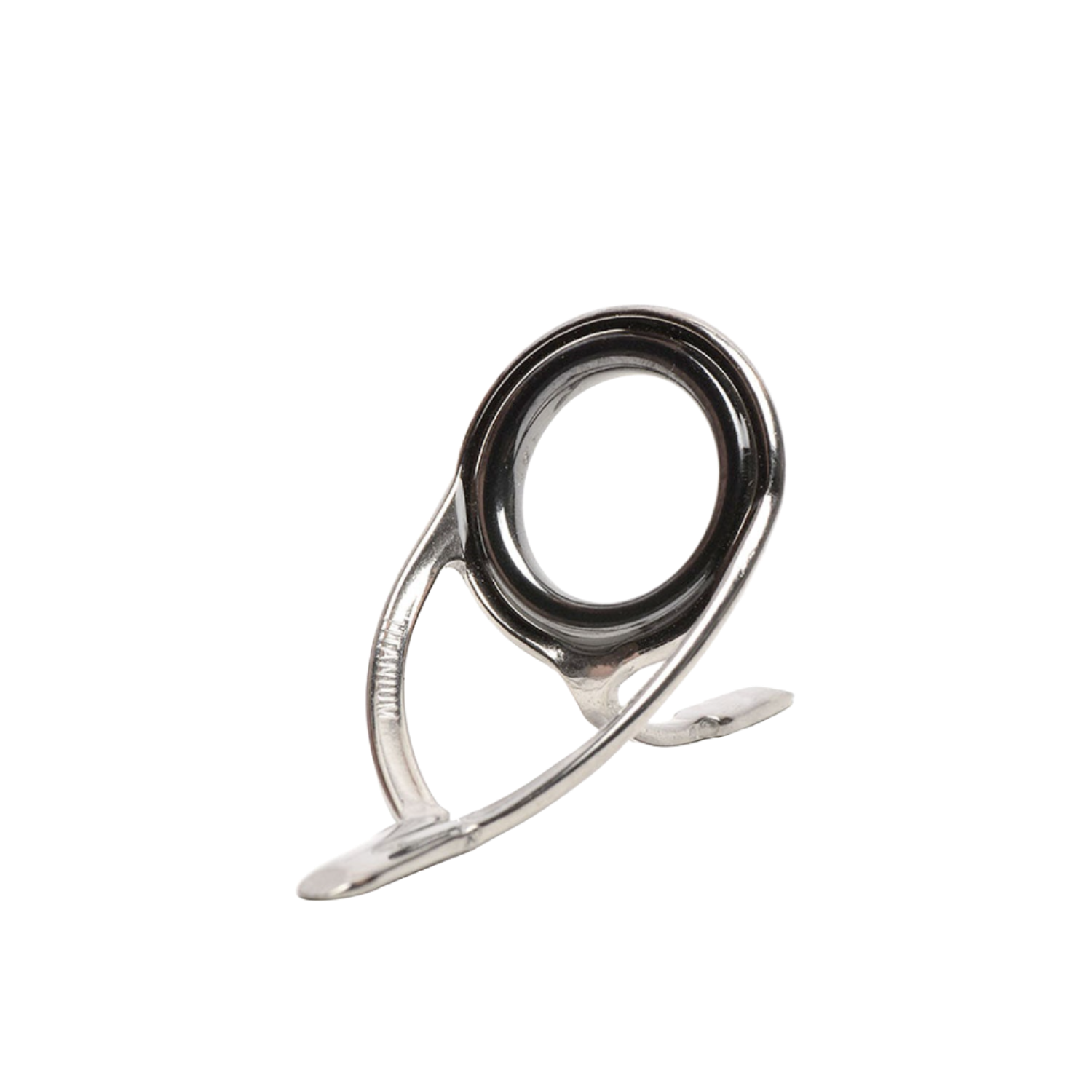

KW Double-Foot guides are part of Fuji’s flagship K-Series guide selection, now the most complete and advanced guide “family” in the Fuji arsenal. Builders continue to move to K-Series guides for their tangle-free operation, in- credible frame strength, superb ring retention and striking good looks. Using K-Series frames, factories and custom builders alike can find what they need from ultra-light high frame strippers to new RV surf rod guides. K-Series includes products for both conventional and micro-rod builds, casting or spinning in a huge variety of rings and frame finishes. Designed for use with NGC, COF or Modified COF layouts.
Note: The 12M and 10M are new listings for use with the new RV Double-Foot Surf Guide.
Heavy Duty Layout: KW Reduction > KW Runners
Medium Duty Layout: KW Reduction > KB Choke +2 more > KT Runners
Titanium Performance at Stainless Prices
Corrosion Control (CC/BC) Now Available!. Fuji guide frames are now offered with a new corrosion control matte finish that provides up to 7 times more corrosion control resistance than standard Stainless Steel – and look amazing! The new CC finish is available exclusively in all K-Series SiC, Alconite, and the all new FazLite rings.
Specifications
| TITANIUM SIC TKWSG |
GUNSMOKE SIC KWSG |
HEIGHT MM |
|---|---|---|
| 5 | – | 7.3 |
| 5.5 | 5.5 | 7.6 |
| 6 | 6 | 8.7 |
| 7 | 7 | 9.7 |
| 8 | 8 | 12.3 |
| 10 | 10 | 15.2 |
| 10M | – | 18.1 |
| 12 | 12 | 17.4 |
| 12M | – | 25.6 |
| 16 | 16 | 21.2 |
| 20 | 20 | 27.9 |
| 25 | 25 | 42.4 |
| 30L | 30L | 50.4 |
| 30 | 30 | 61.2 |
| 40L | 40L | 60.2 |
| 40 | 40 | 80.4.0 |
| 50 | 50 | 86.6 |
